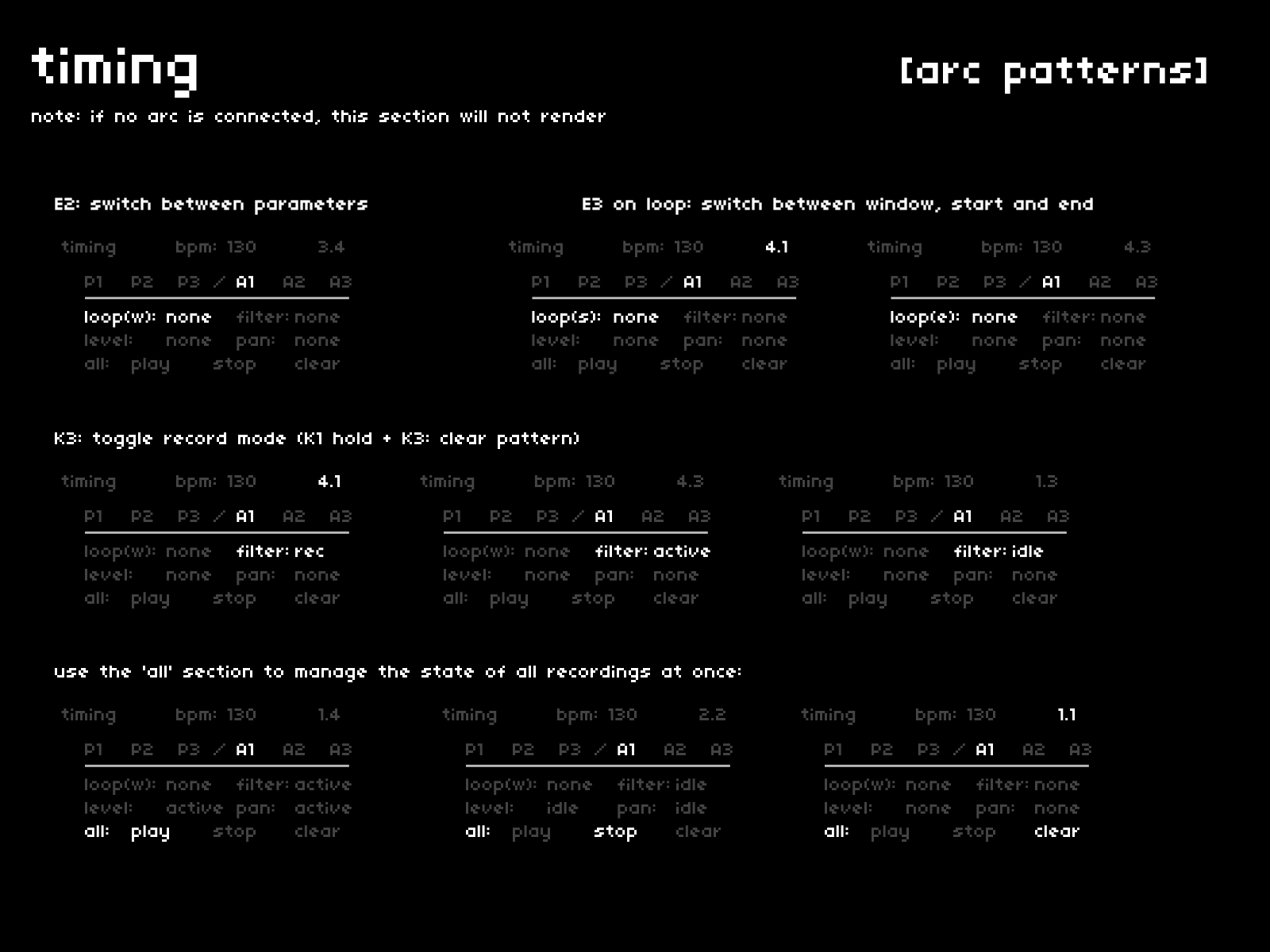

arc patterns
if an arc is connected, it can be used to control pad loop points, filtering, levels, and panning.
these adjustments can be recorded and played back via a connected grid, but also through the on-screen UI.
navigation + control
| hardware | —> | action |
|---|---|---|
E2 |
—> | scroll through the selected arc pattern’s parameters |
E3 on loop |
—> | switch controls between window, start and end |
K3 |
—> | toggle record/playback/pause for selected parameter |
K1 hold + K3 |
—> | clear selected parameter’s pattern |
the all section provides a central set of controls to manage all recorded arc patterns at once.
use K3 on any of these meta-controls to execute them.
