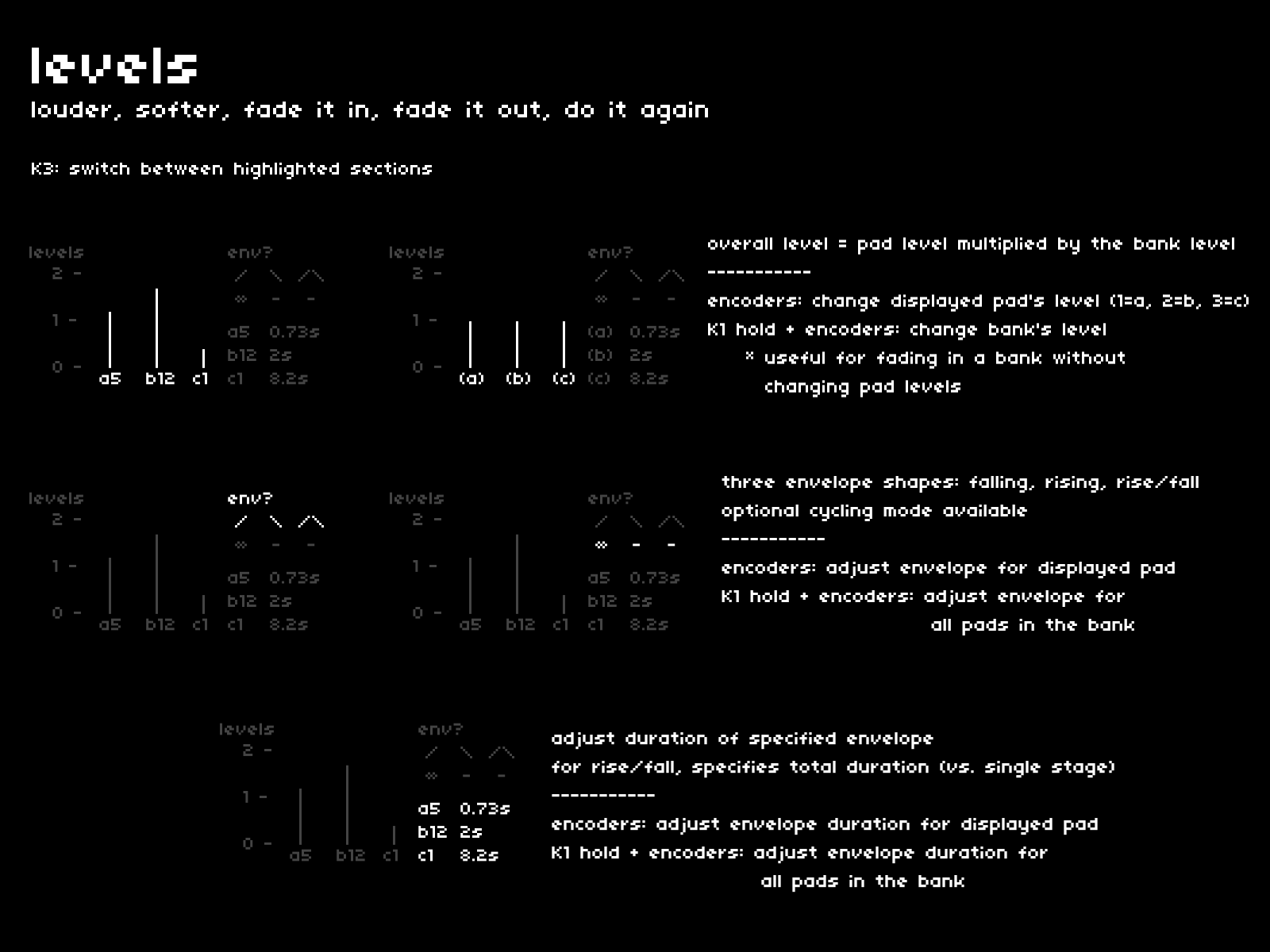

levels
a sound’s presence is crafted by its overall level: loud, soft, fading in, fading out, etc.
as with most parameters in cheat codes, each pad in each bank can have its own level settings.
the [levels] page is where you define these settings.
navigation + control
| hardware | —> | action |
|---|---|---|
K3 press |
—> | switch focus between the four parameters |
K1 hold |
—> | selected parameter applies to entire bank |
E1, E2, E3 |
—> | change selected parameter for pad or bank |
overall level
with the first section selected, each of the three encoders controls a pad’s level.
overall level is determined by the pad level multiplied by the bank level.
each encoder adjusts the level of the displayed pad.
K1 hold: toggle between pad level and bank level
nb. this is useful for fading in an entire bank without changing each pad’s individual level
envelope shapes + cycle
the second section introduces an envelope, with three shapes:
- falling
- rising
- rise/fall
the third section defines whether the envelopes cycle or if they execute once per pad press.
E1, E2, E3: adjust envelope for current pad in banks a, b, c
K1 hold: adjust envelope for every pad in associated bank
envelope duration
the fourth section specifies the duration of the envelope, from 100ms to 60 seconds (exponential).
E1, E2, E3: adjusts envelope duration for current pad in banks a, b, c
K1 hold: adjust envelope duration for every pad in associated bank
